Industrial Flat Panel Touch Display 17" Analog TFT-LCD Touch-Screen Resistive AntiGlare Serial DB9M (USB Part# CDS-FM17TU) NEMA4/12 Compliant Front Panel Heavy Duty-Aluminum Silver-Splatter-Finish 450:1-Contrast 250cd/m2-Brightness 1024x768-Resolution 140/120-Viewing 19"Wx16"Hx4"D-Dimensions w/6'Cables W2Y L2928
| Chassis Configuration |
19"W x 16"H x 2.5"D NEMA12 Panel Mount |
| Panel Cut Out |
Panel Cut out Dimensions 16.25" x 14.25" |
| Touch Screen |
Resistive Anti Glare Touch Screen DB9 Serial Interface NEMA4/12 Compliant |
| Display Monitor |
17" Color TFT Active Matrix LED |
| Resolution |
1280 x 1024 |
| Contrast Ratio |
1000:1(typical) / 10M:1 DCR |
| Aspect Ratio |
5:4 |
| Viewing Angles |
170º horizontal, 160º vertical |
| Response Time |
5ms (typ) |
| Light Source |
LED with 40,000 hours (min.) |
| Brightness |
250 cd/m2 (typ) |
| Panel Surface |
Anti-glare Hard-coating (3H) Resistive Anti Touch Screen |
| Requirement |
AC 120/230Volt 50/60Hz |
| Consumption |
20W (typ) |
| Eco Mode |
15W (Optimize) / 12W (Conserve) |
| Power Save Mode |
≤ 0.5W |
| PC |
PC compatibles (VGA up to 1280x1024 non-interlaced) |
| Mac® |
Power Mac Up to 1280x1024 |
| Video |

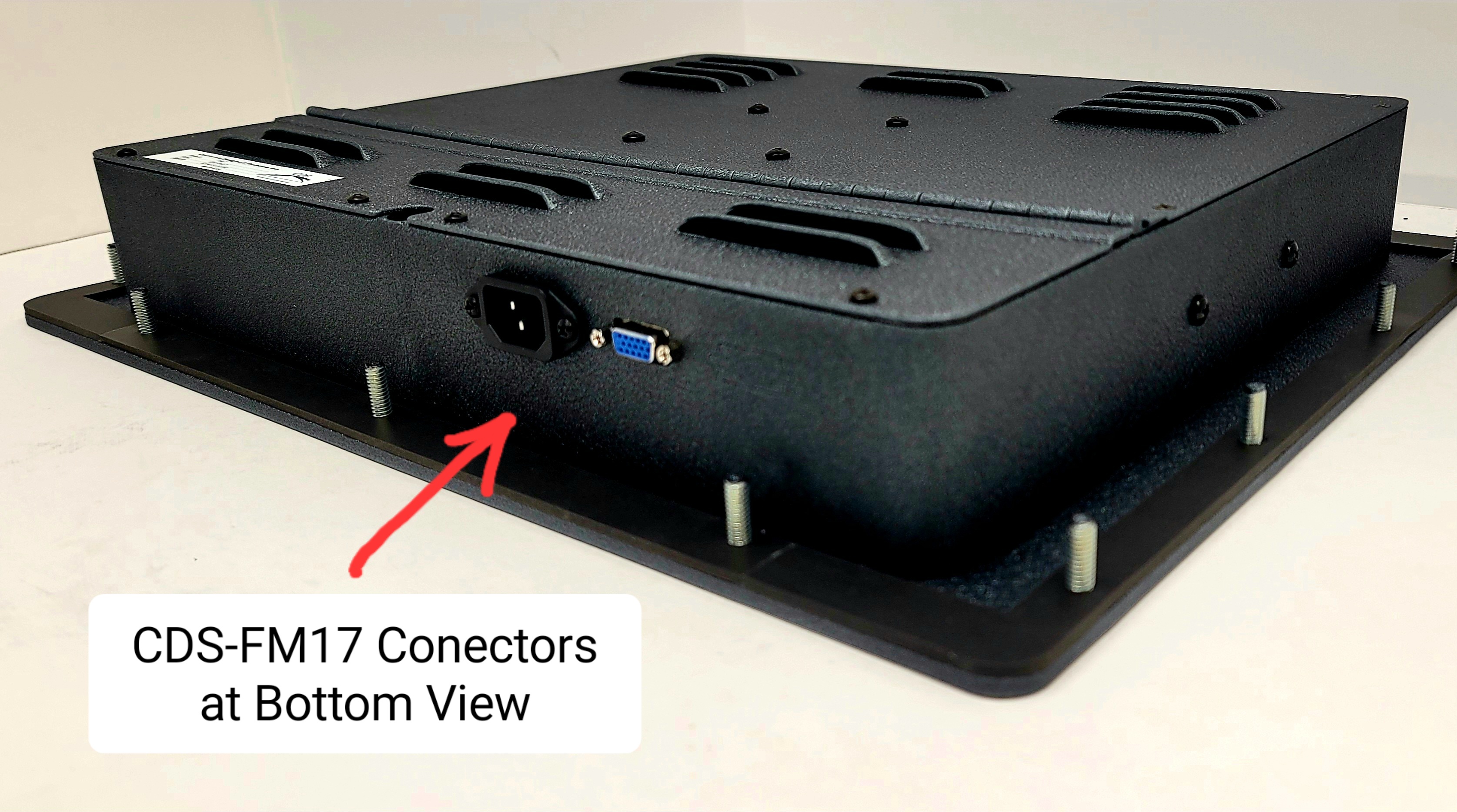

Analog/Digital 15-pin mini D-sub |
| Touch Screen Inteface |
DB9 Serial Interface |
| Power |
Internal Power Board, 3-pin plug (CEE22) |
| Temperature | 32°F–104°F (0–40°C) |
| Humidity |
10–90% (non-condensing) |
| Analog/Digital |
RGB Analog (75 ohms, 0.7 / 1.0 Vp-p) |
| Frequency |
Fh = 24 – 82 kHz ; Fv = 50 – 75 Hz |
| Sync |
Separate Sync |
| Lbs |
14 Lbs |

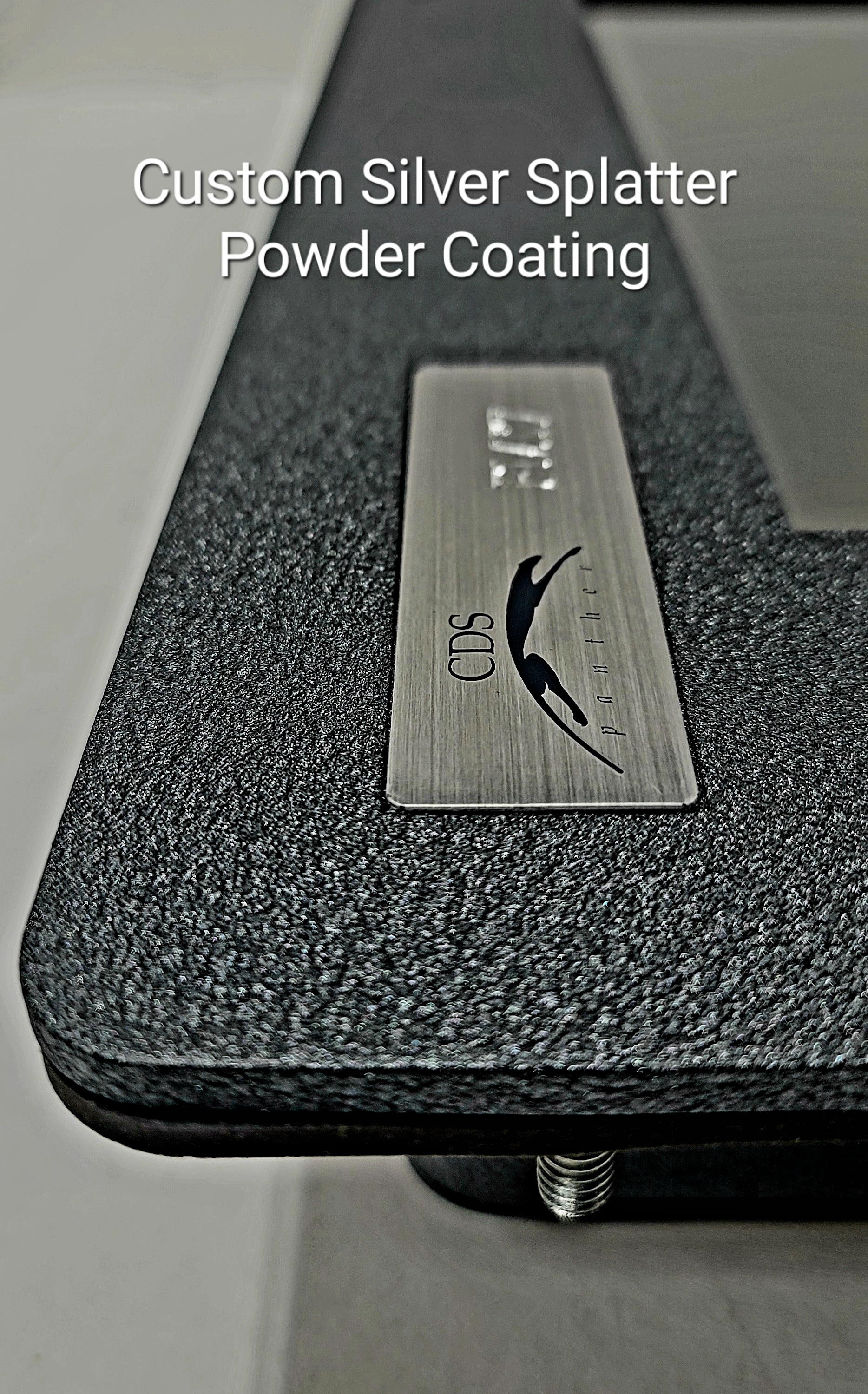

| Powder Coat |
Heavy Duty Silver Splatter Powder Coating two coat application |
| Custom Colors |
Custom Coating with 5 different colors |
| Front Panel |
19"W x 16"H x 2.5"D NEMA12 Panel Mount |
| Panel Cut Out |
Panel Cut out Dimensions 16.25" x 14.25" |
| Limited Warranty |
Two-Year Limited Warranty on Parts, Labor & Backlight |
